LOUVER SHUTTER

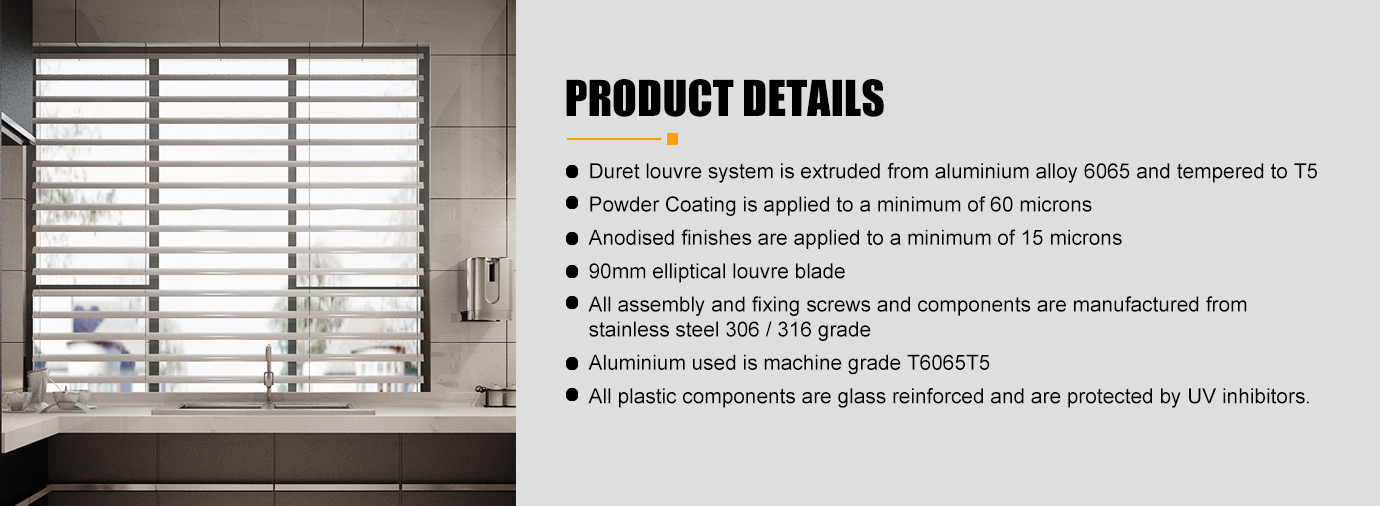

• Duret louvre system is extruded from aluminium alloy 6065 and tempered to T5
• Powder Coating is applied to a minimum of 60 microns
• Anodised finishes are applied to a minimum of 15 microns
• 90mm elliptical louvre blade
• All assembly and fixing screws and components are manufactured from stainless steel 306 / 316 grade
• Aluminium used is machine grade T6065T5
• All plastic components are glass reinforced and are protected by UV inhibitors.

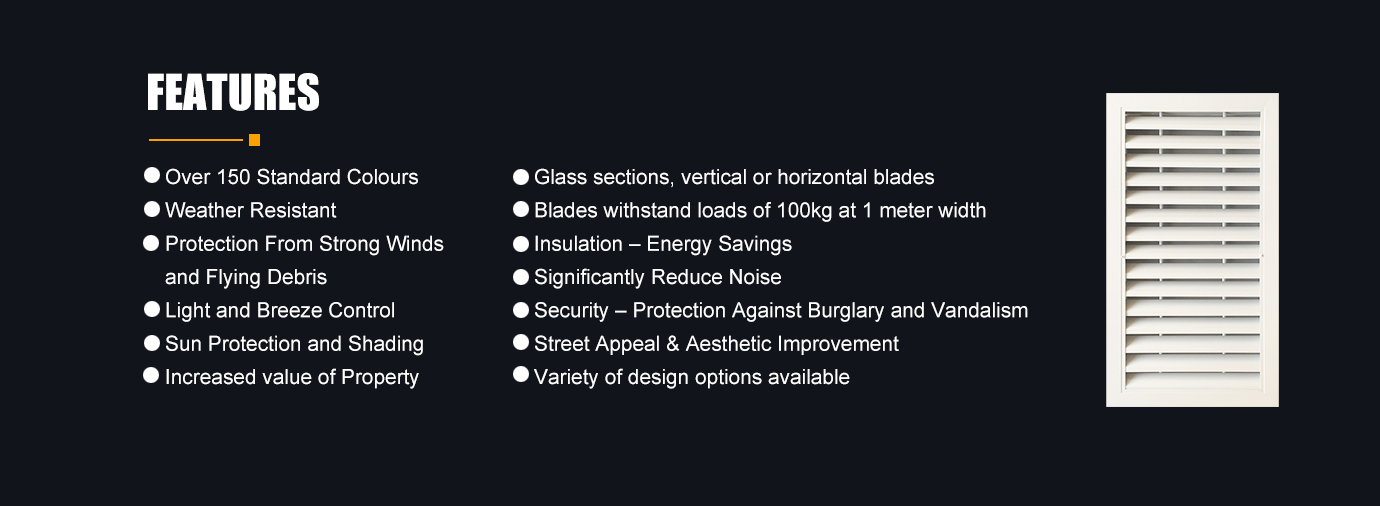

• The louvre blades and unique spring clip pivot system have a 100kg load rating at a span of 1 metre
• 34mm style and rail: slimline design perfect for in reveal installation

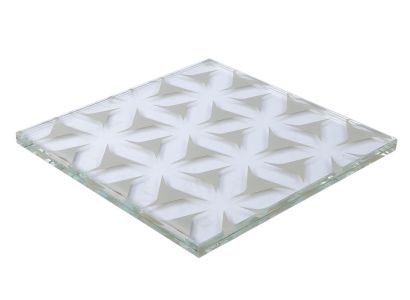

• Glass panel option in Clear, Green or Smoke Grey 6.4 Laminated
• Maximum height 3000mm maximum width 1100mm subject to the configuration

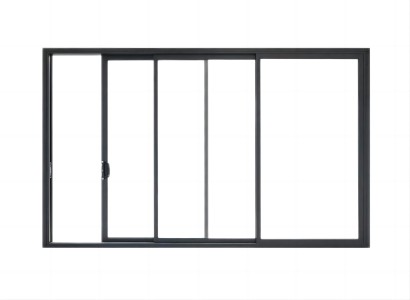

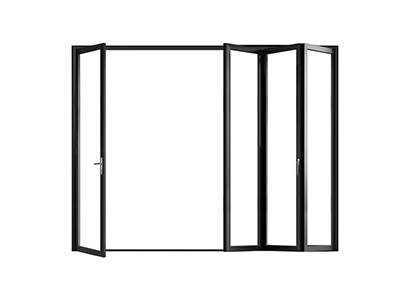

• Available in Fixed, Bi-fold, Hinged, Sliding & Stacking configuration
